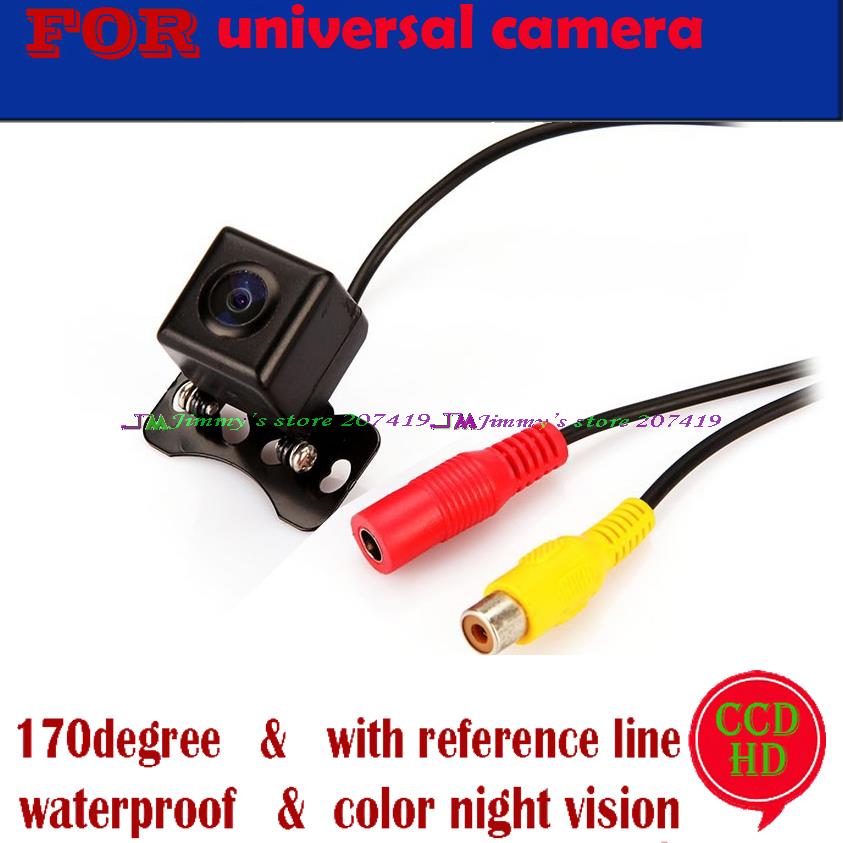

rear view camera ccd/SONY CCD Night color car reversing video system for universal camera front /rear carmera Angle adjustable

rear view camera ccd SONY CCD Night color car reversing video system for universal camera front
Click to see details
rear view camera ccd SONY CCD Night color car reversing video system for universal camera front
100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  12.80 € / piece
Sale price:  9.73 € / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

USD 26.00/setUSD 39.60/pieceUSD 27.50/pieceUSD 48.00-51.00/setUSD 36.80-50.50/setUSD 75.00/bagUSD 23.00-32.00/pieceUSD 23.00-32.00/piece You can find all car model rearview cameras in our store. Just use your car model as a keyword to seach in our store. For universal camera front /rear carmera Angle adjustable The camera can be front or rear (rear camera as default), if you need front or side camera ,please leave message, You can select CMOS /CCD /for SONY chip CCD camera ,please view the description when you buy ,thanks.

Cable decription: All chips description below : <1>Specification for car rear camera (CMOS)

Image sensor PC1030
Signal system NTSC/PAL
Horizontal resolution 420 TV lines
Effective pixels 628×582(PAL),510×492(NTSC)NTSC will be sent as default )
Lens viewing angle 170 degree
Minimum illumination 0.1LUX
IP Rate IP67
Video output RCA, 1.0Vp – p,75ohm
Image pipeline features Auto exposure,AWB,AGC,Auto flicker detection and cancellation
Image Reverse Left-Right mirror
White Balance Automatically
AGC&BLC Automatically
S/N ratio Better than 48 dB(AGC OFF)
Shutter speed 1 / 60 – 1 / 15,000sec
Installation hung external
Power supply DC 12V
Current consumption 130mA
Material Aluminum Alloy
Remarks Color/Warterproof/Shockproof
Operating temperature -20 to 70 degree Celsius,RH95%
Storage Temperature -30 to 60 degree Celsius,RH95%
CMOS image shown below:

<2>Specification for car rear camera(CCD camera) as below It’s very clear in dark night
Image sensor 1/3″ Color CCD
Signal system NTSC/PAL(NTSC will be sent as default )
Horizontal resolution 480 TV lines
Effective pixels 728×512
Lens viewing angle 170 degree
Minimum illumination <0.1LUX
IP Rate IP67
Video output RCA, 1.0Vp – p,75ohm
Image pipeline features Auto exposure,AWB,AGC,Auto flicker detection and cancellation
Image Reverse Left-Right mirror
White Balance Automatically
AGC&BLC Automatically
S/N ratio Better than 48 dB(AGC OFF)
Shutter speed 1 / 60 – 1 / 15,000sec
Installation hung external
Power supply DC 12V
Current consumption 130mA
Material Aluminum Alloy
Remarks Color/Warterproof/Shockproof
Operating temperature -20 to 70 degree Celsius,RH95%
Storage Temperature -30 to 60 degree Celsius,RH95%

CCD camera displaying vision as below

<3>Specification for car rear camera (for SONYCCD) for SONY CCD HD is Ultra-clear night vison

Image sensor 1/3″ for SONY Color CCD
Signal system NTSC/PAL(NTSC will be sent as default ,if you need PAL ,please leave message to us,thanks)
Horizontal resolution 520 TV lines
Effective pixels 728×512
Lens viewing angle 170 degree
Minimum illumination <0.05LUX
IP Rate IP67
Video output RCA, 1.0Vp – p,75ohm
Image pipeline features Auto exposure,AWB,AGC,Auto flicker detection and cancellation
Image Reverse Left-Right mirror
White Balance Automatically
AGC&BLC Automatically
S/N ratio Better than 48 dB(AGC OFF)
Shutter speed 1 / 60 – 1 / 15,000sec
Installation hung external
Power supply DC 12V
Current consumption 130mA
Material Aluminum Alloy
Remarks Color/Warterproof/Shockproof
Operating temperature -20 to 70 degree Celsius,RH95%
Storage Temperature -30 to 60 degree Celsius,RH95%

for SONY CCD displaying vision as below:(really shoot)

Main Features
1,High Clear , Night Vision,Water Proof, Plastic material.
2,170 degree view angle, very small, and easy for installing
3,Low illumination and fill light automatic, waterproof
4,Special Designed For camera easy to install and run
5,Designed according to the license light hole install.
6,All you need is a screen and video input port. How to install

  • Take out your stock license plate light at the back of your car.
  • Fix the camera to where the stock license plate light was.
  • Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
  • Connect the power of the camera to your car reverse lights – red wire to positive and black wire to negative.
  • Connect the video cable of the camera to the extension cord.
  • Connect the extension cord to your car monitor.
  • You will see the images when your car is in reverse shift.

AS shown shown the installation effect below(only as reference) 170 Degree—Wide Angle Payment and shippment We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.we will deliver by aliexpress detail address. Make sure your detail address and full name in AliExpress is absolutely correct
